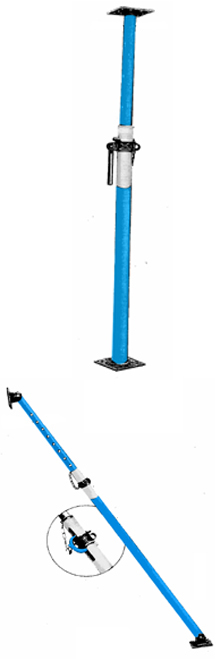

Hi - Reach props provide ideal and most economical
method of support for all kind of formwork to slab,
beams, walls and column. They are invaluable for a
wide variety of other applications in general building
construction.
- Props eliminate cost of skilled labour and timber wastages.
- Props are adjustable to various height requirements.
- Quickly and easily erected by unskilled labour.
- Props are easy to handle and can be used time and time again.
- No loose parts to be lost or mislaid.
- U - Head/ Base plate can accommodate standard formwork accessories.
- No more lost pins and broken chains.
Props are made out of inner and outer pipe of 40 NB
and 50 NB class tubes confirming to IS - 1161/1239 ID = 48.3mm OD = 60.3mm Nut = malleable casting Wire rope = flexible G.I. steel wire Top = fork Head/Base Plate optional Base = Plate 150 X 150 X 6mm
|
 |
SIZES AVAILABLE
| Prop Size |
Height (m) |
SWL (Kgs.) |
| Closed |
Extended |
Closed |
Extended |
| 1p |
1.50 |
2.75 |
3200 |
2300 |
| 2p |
2.00 |
3.25 |
3000 |
2200 |
| 3p |
2.00 |
3.75 |
2900 |
2000 |
| 4p |
3.00 |
4.75 |
2300 |
1150 |
|
PUSH PULL PROPS
Push Pull Props is for holding and plumbing single &
double faced forms lower plate and top plate are
hinged to the pipes unlike telescopic props where
these are fixed. Bottom plate is anchored to the
ground where as top plate is fixed to the formwork. |
|
|
