Column Clamps


For greater speed & economy

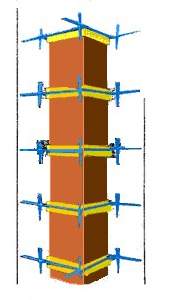

  • Column clamps are quickly adjusted and secured to ensure absolute rigidity of steel and timber formwork for concrete columns, beams, hanging soffits and casings to steel stanchions.
  • They save time, labour and materials by completely eliminating the cutting to waste of timber and the eventual deterioration and scrapping of materials.
  • The arms of all three sizes are interchangeable and suitable for square and rectangular sections.
  • The slot arrangement allows for simple, speedy and accurate adjustment to any dimension within the size range.
  • There are no loose parts to be lost or mislaid and the clamps can be used an unlimited number of times.
  • Wedges are secured to the arms by a flexible galvanized steel wire instead of the usual chain and ring.
    The greater strength and flexibility of this wire provides the solution to the perpetual and costly problem of broken chins and lost wedges.


Length of arm Distance between arms
Min Max
Size M M M
1 0.87 0.25 0.69
2 1.16 0.37 0.97
3 1.59 0.59 1.41
